Parameter

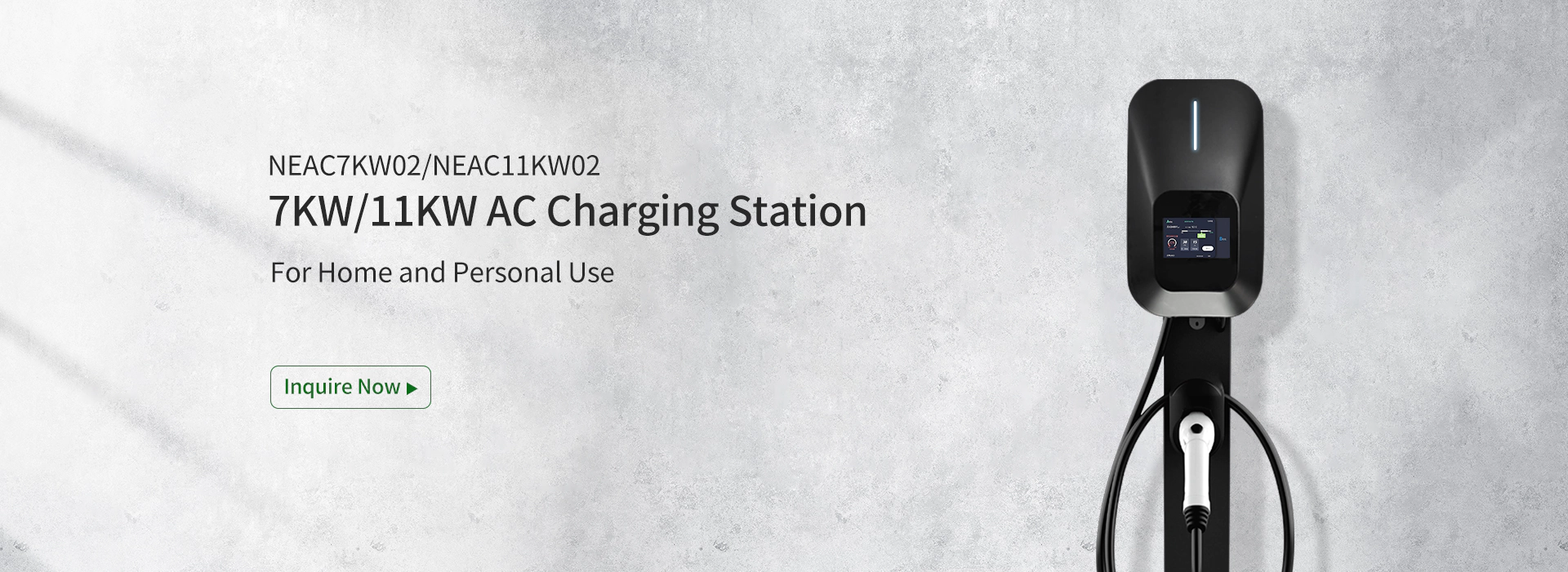

| Model | NEAC7KW02 | NEAC11KW02 |
|---|---|---|
| Input | ||
| Power supply | 1P+N+PE | 3P+N+PE |
| Rated voltage | 230V AC | 400V AC |
| Rated current | 32A | 16A |
| Frequency | 50/60Hz | 50/60Hz |
| Output | ||
| Output voltage | 230V AC | 400V AC |
| Maximum current | 32A | 16A |
| Rated power | 7KW | 11KW |
| Charging interface | Type 2 socket | Type 2 socket |
| User interface | ||
| Case | Galvanized steel | Galvanized steel |
| Front panel | Tempered glass | Tempered glass |
| LED indicator light | Green/Yellow/Red | Green/Yellow/Red |
| LCD display screen | 4.3 inches | 4.3 inches |
| RFID card reader | Mifare ISO/IEC 14443 A | Mifare ISO/IEC 14443 A |
| Starting method | Plug and play/ RFID 卡/ App | Plug and play/ RFID 卡/ App |
| Emergency stop button | Yes | Yes |
| Communication | ||
| WiFi | Optional | Optional |
| Ethernet | Optional | Optional |
| 3G/4G | Optional | Optional |
| OCPP | OCPP 1.6 Json | OCPP 1.6 Json |
| Energy meter | Optional | Optional |
| Safety | ||
| Leakage protector | 30mA Type A + 6mA DC | 30mA Type A + 6mA DC |
| Protection rating | IP54 | IP54 |
| Impact resistance rating | IK08 | IK08 |
| Electrical protection | Overcurrent protection,Residual current protection,Short circuit protection,Ground protection,Surge protection,Over/undervoltage protection,Over/underfrequency protection,Overtemperature protection | Overcurrent protection,Residual current protection,Short circuit protection,Ground protection,Surge protection,Over/undervoltage protection,Over/underfrequency protection,Overtemperature protection |
| Certification | ||
| Certification | CE | CE |
| Certification standards | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 |
| Environment | ||
| Warranty | 1 year | 1 year |
| Installation | Wall-mounted/Pole-mounted | Wall-mounted/Pole-mounted |
| Operating temperature | -30℃~+50℃ | -30℃~+50℃ |
| Operating humidity | 5%~95% | 5%~95% |
| Operating altitude | <2000m | <2000m |
| Size | ||
| Product size | 313x246x100mm (H*W*D) | 313x246x100mm (H*W*D) |
| Packaging size | 460x400x170mm (L*W*H) | 460x400x170mm (L*W*H) |
| Net weight | 3.5kg | 4.0kg |
| Gross weight | 4.0kg | 4.5kg |
