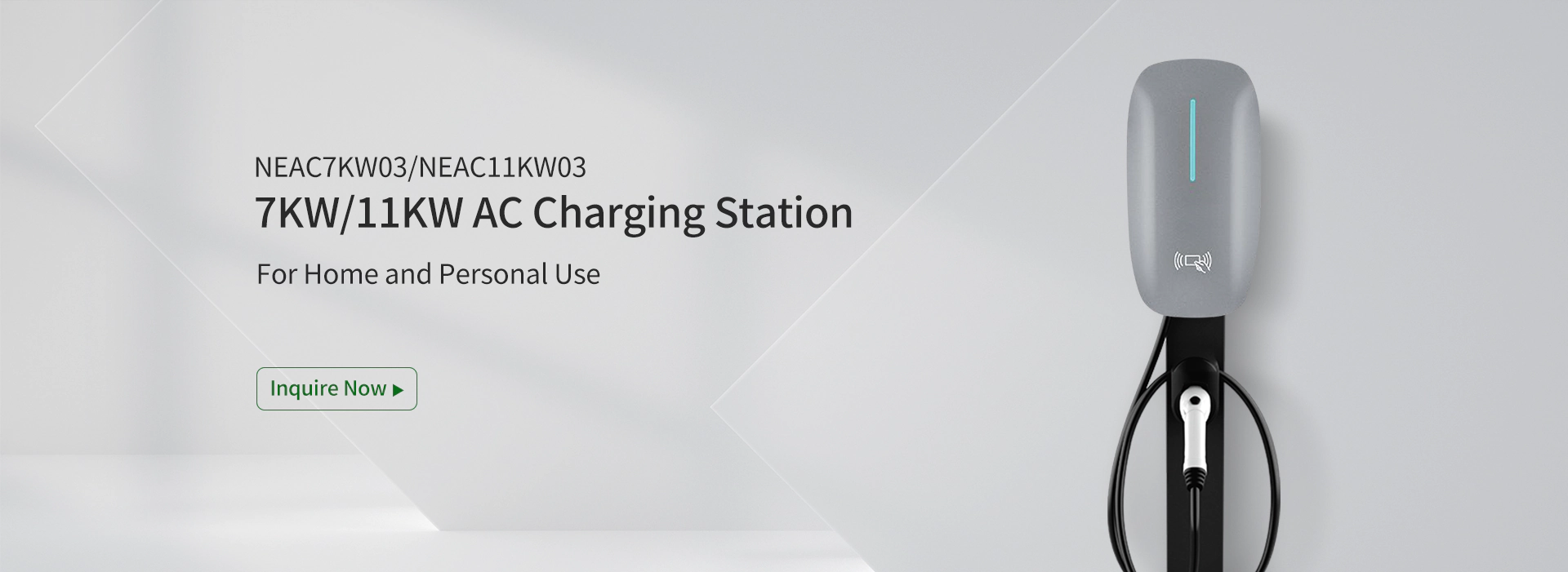

NEAC7KWO3/NEAC11KW03 7KW/11KW AC Charging Station

Style1

Style2

Parameter
ModelNEAC7KW03NEAC11KW03
Input
Power supply1P+N+PE3P+N+PE
Rated voltage230V AC400V AC
Rated current32A16A
Frequency50/60Hz50/60Hz
Output
Output voltage230V AC400V AC
Maximum current32A16A
Rated power7KW11KW
Charging interfaceType 2 socketType 2 socket
User interface
CaseGalvanized steelGalvanized steel
LED indicator lightGreen/Yellow/RedGreen/Yellow/Red
RFID card readerMifare ISO/IEC 14443 AMifare ISO/IEC 14443 A
Starting methodPlug and play/ RFID 卡/ AppPlug and play/ RFID 卡/ App
Emergency stop buttonYesYes
Communication
WiFiOptionalOptional
EthernetOptionalOptional
3G/4GOptionalOptional
OCPPOCPP 1.6 JsonOCPP 1.6 Json
Energy meterOptionalOptional
Safety
Leakage protector30mA Type A + 6mA DC30mA Type A + 6mA DC
Protection ratingIP54IP54
Impact resistance ratingIK08IK08
Electrical protectionOvercurrent protection,Residual current protection,Short circuit protection,Ground protection,Surge protection,Over/undervoltage protection,Over/underfrequency protection,Overtemperature protectionOvercurrent protection,Residual current protection,Short circuit protection,Ground protection,Surge protection,Over/undervoltage protection,Over/underfrequency protection,Overtemperature protection
Certification
CertificationCECE
Certification standardsEN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018
Environment
Warranty1 year1 year
InstallationWall-mounted/Pole-mountedWall-mounted/Pole-mounted
Operating temperature-30℃~+50℃-30℃~+50℃
Operating humidity5%~95%5%~95%
Operating altitude<2000m<2000m
Size
Product size313x246x100mm (H*W*D)313x246x100mm (H*W*D)
Packaging size460x400x170mm (L*W*H)460x400x170mm (L*W*H)
Net weight3.5kg4.0kg
Gross weight4.0kg4.5kg
