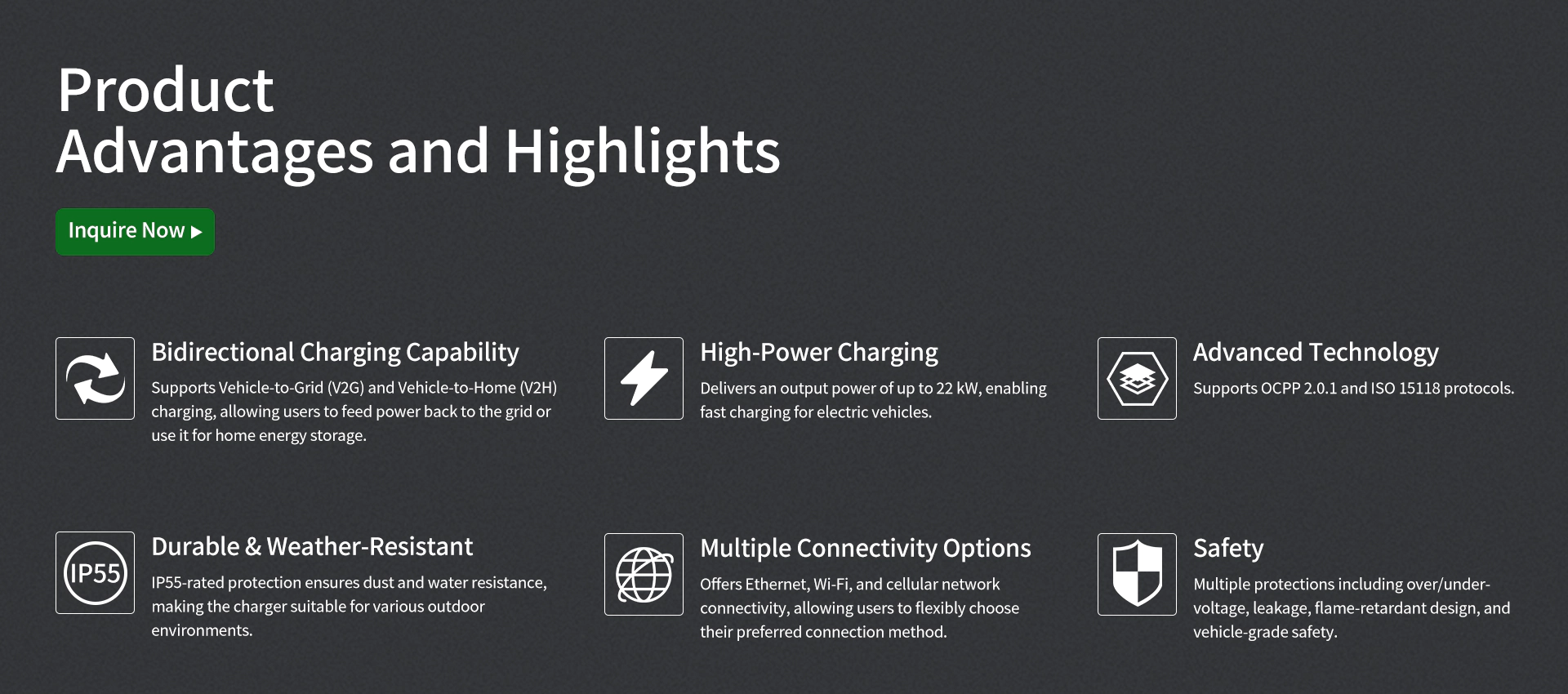

This V2H (Vehicle-to-Home) charging station uses bidirectional charging technology to supply power back to the home. By feeding energy from the EV’s battery into the household electrical system, it can power appliances, lighting, and other home devices.
This capability effectively transforms the electric vehicle into a mobile energy storage system, providing reliable backup power during outages and helping lower electricity costs through peak-shaving and the use of stored energy when grid prices are high.
| Model | V2H Charger 03 7KW | V2H Charger 03 22KW |
| Rated Power | 7kW | 22kW |
| RCD | 30mA AC & 6mA DC | 30mA AC & 6mA DC |
| Ingress Protection | IP55 | IP55 |
| Surge Protection | IK10 | IK10 |
| Protocol | OCPP1.6J, OCPP2.0.1 | OCPP1.6J, OCPP2.0.1 |
| Certification | CE, IEC 61851-1, IEC 62196-2 | CE, IEC 61851-1, IEC 62196-2 |
| Cable Length | 5m | 5m |
| Display | 2.8′ LCD | 2.8′ LCD |
| Operation Temp | -30℃~+50℃ | -30℃~+50℃ |
| Dimension | 380mm x 288mm x 141mm | 380mm x 288mm x 141mm |
